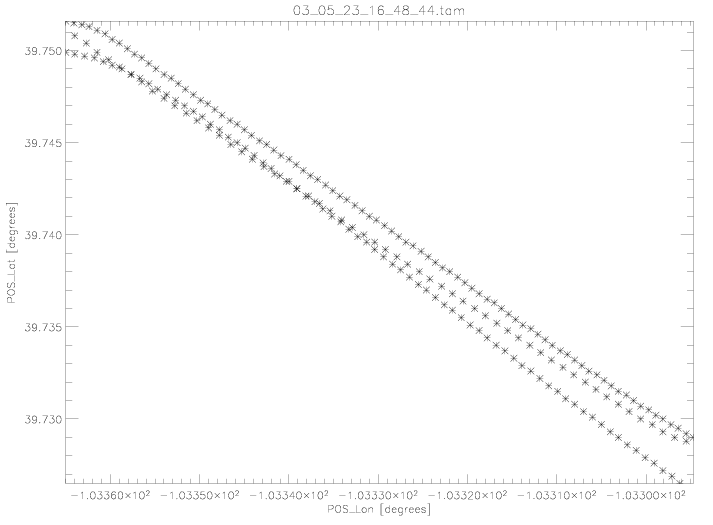

Figure 1:  The aircraft's position (latitude versus longitude) during wind comparison period 1 on the May 23, 2003 flight.  Symbols are given every second each segment.

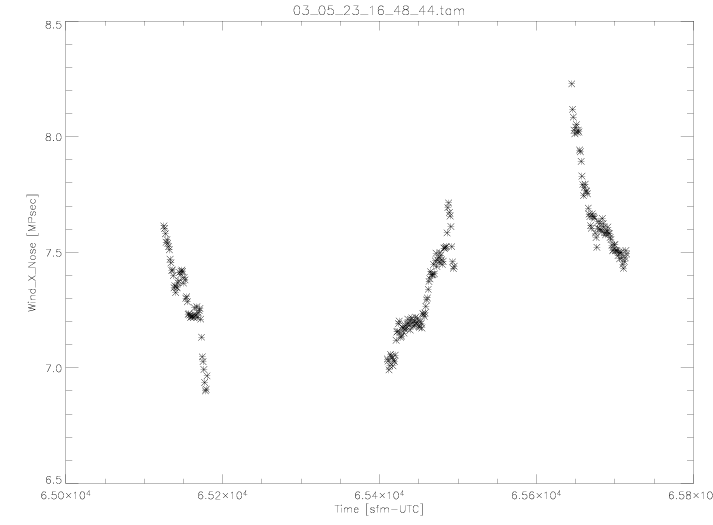

Figure 2:  The X (East) component of the wind during comparison 1 on the May 23, 2003 flight.  Symbols are given every second for time segments illustrated in Figure 1.  The time gap between the two segments is when the aircraft was turning around so it could overfly the same location.

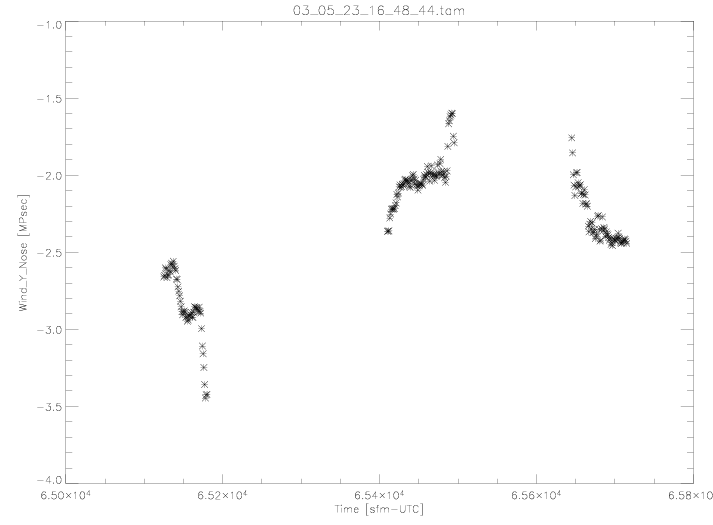

Figure 3:  The Y (north) component of the wind during comparison 1 on the May 23, 2003 flight.  Symbols are given every second for the time segments illustrated in Figure 1.  The time gap between the segments is when the aircraft was turning around so it could overfly the same location.

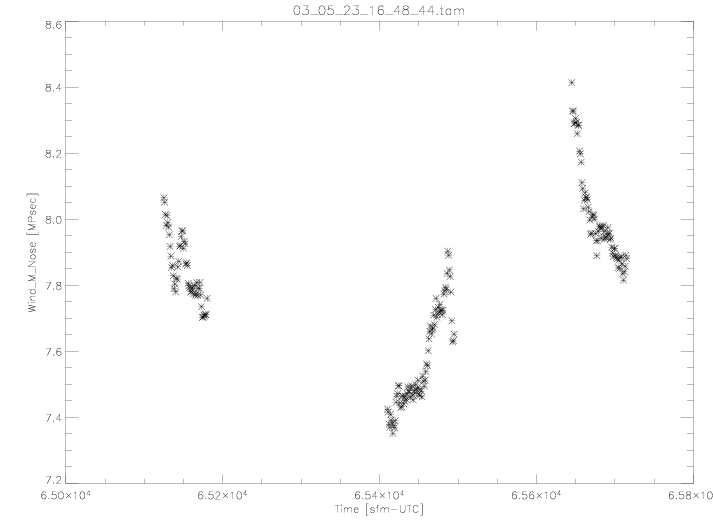

Figure 4:  The wind magnitude during comparison 1 on the May 23, 2003 flight.  Symbols are given every second for the time segments illustrated in Figure 1.  The time gap between the two segments is when the aircraft was turning around so it could overfly the same location.

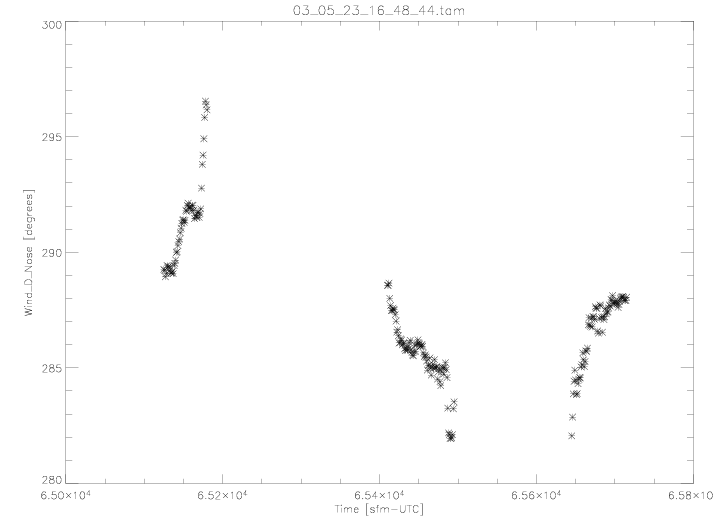

Figure 5:  The wind direction during comparison 1 on the May 23, 2003 flight.  Symbols are given every second for the time segments illustrated in Figure 1.  The time gap between the two segments is when the aircraft was turning around so it could overfly the same location.
